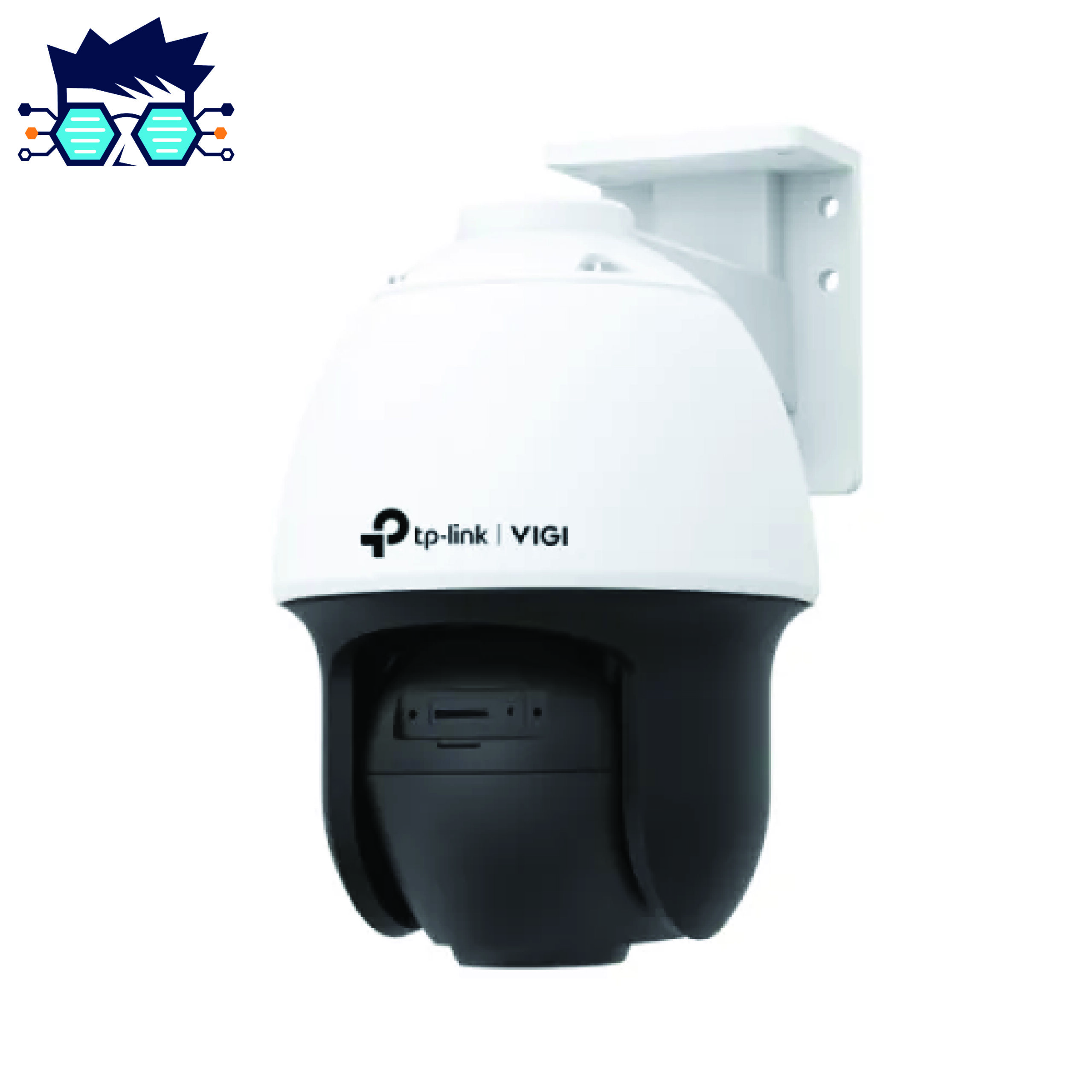

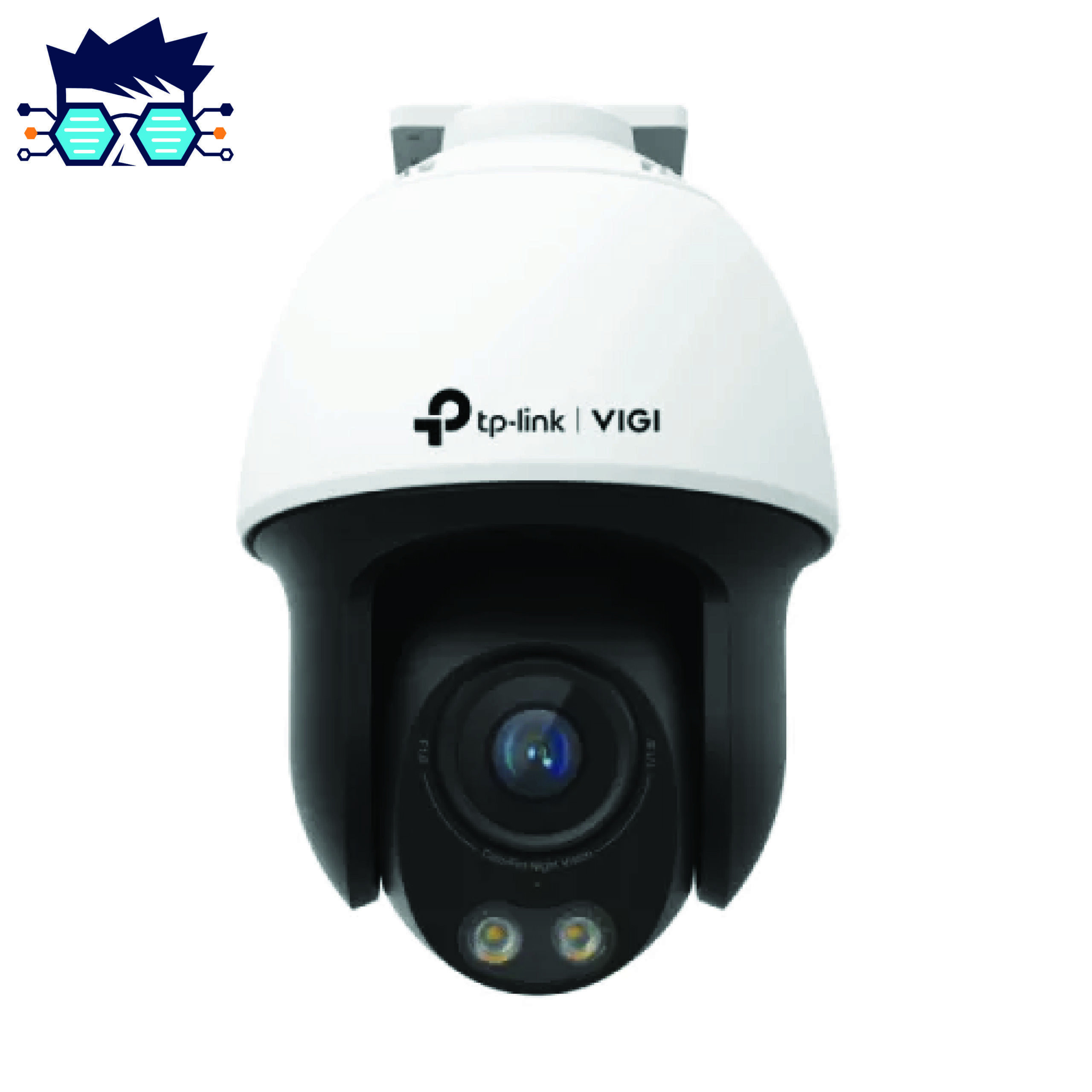

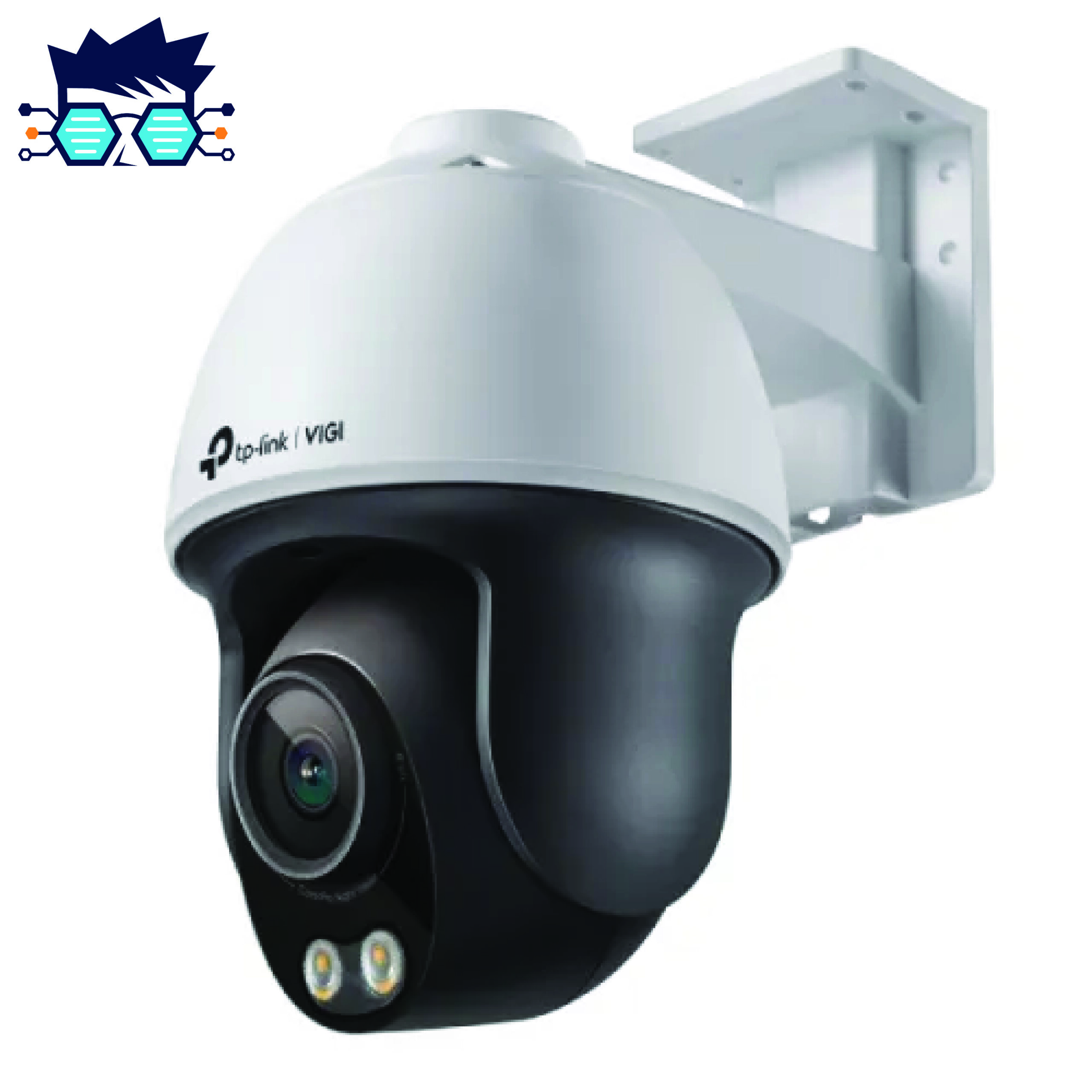

TP-Link VIGI C540S 4MP ColorPro Night Vision PTZ Camera
12,000.00৳ Original price was: 12,000.00৳ .11,300.00৳ Current price is: 11,300.00৳ .
Key Features
- Model: VIGI C540S
- Image Sensor: 1/1.79” Progressive Scan CMOS
- Resolution: 4MP Super-High Definition and 24h Full-Color
- Lens: 4mm, IR Distance: Max. 30 Meter, 360° Monitoring
- Features: PoE, IP66, Two-Way Audio, 3D DNR, Smart Detection
Specification
| Camera Feature | ||
| Image Sensor | 1/2.7” Progressive Scan CMOS | |
| IR Distance | • 2.8 mm Detect: 64 m (210 ft) Observe: 27 m (89 ft) Recognize: 13 m (43 ft) Identify: 6 m (20 ft) • 4 mm Detect: 80 m (262 ft) Observe: 33 m (108 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
|
| Others | Max. Resolution 2688 x 1520 Main Stream • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 Sub-Stream • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 704×576,640×480, 352×288, 320×240 Bit Rate Control CBR, VBR Video Compression • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 H.264 Type High Profile H.264+ Main Stream Supported H.265 Type Main Profile* H.265+ Main Stream Supported* Video Bit Rate • Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
|
| Lens | ||
| Type | Fixed Focal Lens | |
| Focal Length | 2.8mm 4mm |
|
| Aperture | F1.6 | |
| Angle of View | • 2.8 mm: Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118° • 4 mm: Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7° |
|
| Physical Specification | ||
| Dimension | 74 × 184 × 74 mm | |
| Weight | 0.525 Kg | |
| Power | • 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 11.5 W |
|
| Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE | |
| Others | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera Built-in Speaker ALARM AND EVENT MANAGEMENT Smart Event • Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • Smart Frame • People Detection • Vehicle Detection Basic Event • Motion Detection • Video Tampering Detection • Exception ( Illegal Login) • Scene Change Detection Alarm Linkage • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing Output Notification Message Push Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
|
| Warranty | ||
| Warranty | 1 Year | |
Description
TP-Link VIGI C540S 4MP ColorPro Night Vision PTZ Camera
The TP-Link VIGI C540S 4MP ColorPro Night Vision PTZ Camera is designed to provide superb 24-hour surveillance thanks to its ultra-low light color night vision. Its 360° monitoring minimizes blind areas and provides complete coverage. It uses powerful people and vehicle analytics to swiftly identify and monitor subjects of interest, hence enhancing search efficiency. The TP-Link VIGI C540S 4MP PTZ Camera’s human and vehicle classification assures accurate event notifications by discriminating between people, cars, and other objects. Smart detection actively monitors for irregular events such as area intrusion and line crossing and sends fast notifications. True WDR technology allows for crisp image in high-contrast situations, while the active defense feature uses sound and light to dissuade prospective attackers. Two-way audio enables real-time speech communication, which improves interaction. The TP-Link VIGI C540S 4MP Night Vision PTZ Camera features H.265+ video compression, which reduces file size while maintaining quality, hence decreasing network stress and saving disk space. The IP66 waterproof rating provides dependable outdoor functioning. The Night Vision PTZ camera features a 1/1.79″ Progressive Scan CMOS image sensor, a 4mm fixed focal lens with an F1.0±5% aperture, and a broad horizontal field of view (104°). The illuminator features two white LEDs with a 30-meter range. The TP-Link VIGI C540S Night Vision PTZ Camera supports a variety of protocols and is accessible through the VIGI App, VIGI Security Manager, Web UI, and most web browsers. Additionally, this TP-Link VIGI C540S 4MP ColorPro Night Vision PTZ Camera has smart event and basic event management capabilities, deep learning functions, and interfaces such as an RJ45 Ethernet connector with PoE and a built-in memory card slot that can hold up to 512 GB.
| Megapixels |
4MP |
|---|---|
| Product Type |
Dome Camera ,IP Camera ,PTZ Camera |
| Special Feature |
Full HD ,Two-Way Talk ,Water-proof ,WDR |
